Dimensions
Size comparison

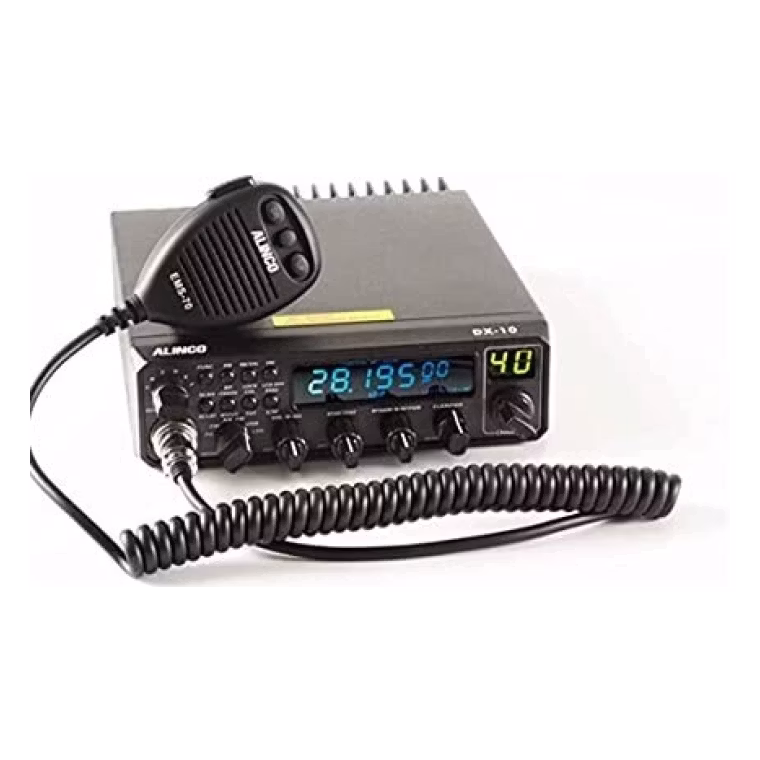

DX-10IC-A16E
| DX-10 | IC-A16E | Difference | |
|---|---|---|---|
| Height | 170 mm | 112 mm | +58 mm |
| Width | 215 mm | 52 mm | +163 mm |
| Depth | 52 mm | 34 mm | +18 mm |
| Weight | 1,400 g | 257 g | +1,143 g |
Drawn to the same scale from the official dimensions (front and side).
Why is DX-10 better than IC-A16E?
- Transmit power25 W vs 6 W4.2×
- Channels360 vs 200+80%
Why is IC-A16E better than DX-10?
- Weight1,400 g vs 257 g5.4×
Specifications
Side by side
| Radio & range | ||
| Radio standards | Amateur | Amateur VHF |
| Licence | Amateur licence | Amateur licence |
| Frequency ranges | 28 - 29.7 MHz | 118 - 136.992 MHz |
| Transmit power | 25 W | 6 W |
| Channels | 360 | 200 |
| Squelch | adjustable | — |
| Power & battery | ||
| Battery capacity | — | 2,400 mAh |
| Battery voltage | 13.8 V | 7.2 V |
| Power source | Mains / 12 V vehicle | Rechargeable pack |
| USB-C charging | No | No |
| Battery level indicator | — | Yes |
| Design & durability | ||
| Weight | 1,400 g | 257 g |
| Width | 215 mm | 52 mm |
| Height | 170 mm | 112 mm |
| Depth | 52 mm | 34 mm |
| Protection rating | — | IP54 |
| Water protection (IPx) | — | IPx4 |
| Military standard (MIL-STD-810) | — | Yes |
| Display | Backlit display | Backlit display |
| Colours | Black | Black |
| Features | ||
| VOX (hands-free) | — | Yes |
| Channel scan | Yes | Yes |
| Dual watch | Yes | — |
| Emergency / SOS alarm | Yes | — |
| Key lock | Yes | — |
| Roger beep | Yes | — |
| PC programmable | Yes | — |
| Connectivity | ||
| Headset / earpiece jack | Yes | Yes |
| Connectors | 6‑polige Mikrofonbuchse, 3,5mm Klinke | 3,5mm Klinke |
| Bluetooth | — | Yes |
| Radios in the base pack | 1 | 1 |
