8.9Range & power6.3
Dimensions
Size comparison

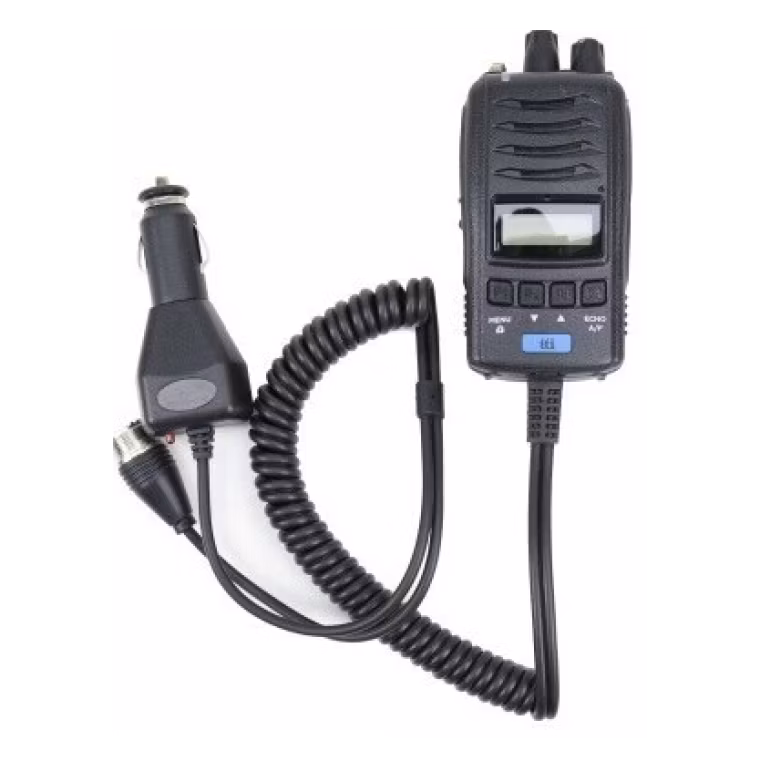

Alan 100 Plus BTCB-H100
| Alan 100 Plus B | TCB-H100 | Difference | |
|---|---|---|---|
| Height | 38 mm | 57 mm | −19 mm |
| Width | 190 mm | 116 mm | +74 mm |
| Depth | 124 mm | 39 mm | +85 mm |
| Weight | 1,200 g | 298 g | +902 g |
Drawn to the same scale from the official dimensions (front and side).
Why is Alan 100 Plus B better than TCB-H100?
- Transmit power4.5 W vs 4 W+12%
Why is TCB-H100 better than Alan 100 Plus B?
- Weight1,200 g vs 298 g4×
- Channels40 vs 802×
- DisplayMonochrome display vs Backlit display
Specifications
Side by side
| Radio & range | ||
| Radio standards | CB | CB |
| Licence | Licence-free | Licence-free |
| Digital mode (DMR / dPMR) | No | No |
| Frequency ranges | 26.965–27.405 MHz | 26.565 - 27.405 MHz |
| Transmit power | 4.5 W | 4 W |
| Channels | 40 | 80 |
| Squelch | — | automatic, adjustable |
| Power & battery | ||
| Battery voltage | — | 7.4 V |
| Power source | — | Mains / 12 V vehicle, Car socket |
| Battery level indicator | — | Yes |
| Design & durability | ||
| Weight | 1,200 g | 298 g |
| Width | 190 mm | 116 mm |
| Height | 38 mm | 57 mm |
| Depth | 124 mm | 39 mm |
| Protection rating | — | IP55 |
| Water protection (IPx) | — | IPx5 |
| Display | Monochrome display | Backlit display |
| Colours | — | Black |
| Features | ||
| VOX (hands-free) | — | Yes |
| Channel scan | — | Yes |
| Emergency / SOS alarm | Yes | Yes |
| Key lock | — | Yes |
| Roger beep | — | Yes |
| Connectivity | ||
| Headset / earpiece jack | Yes | Yes |
| Connectors | 4 Pin socket | — |
